Connect your XL-700 fume extractor to a 150mm flexible duct with a secure, airtight fit. This metal adapter is designed for stable mounting, easy installation, and reliable airflow connection.

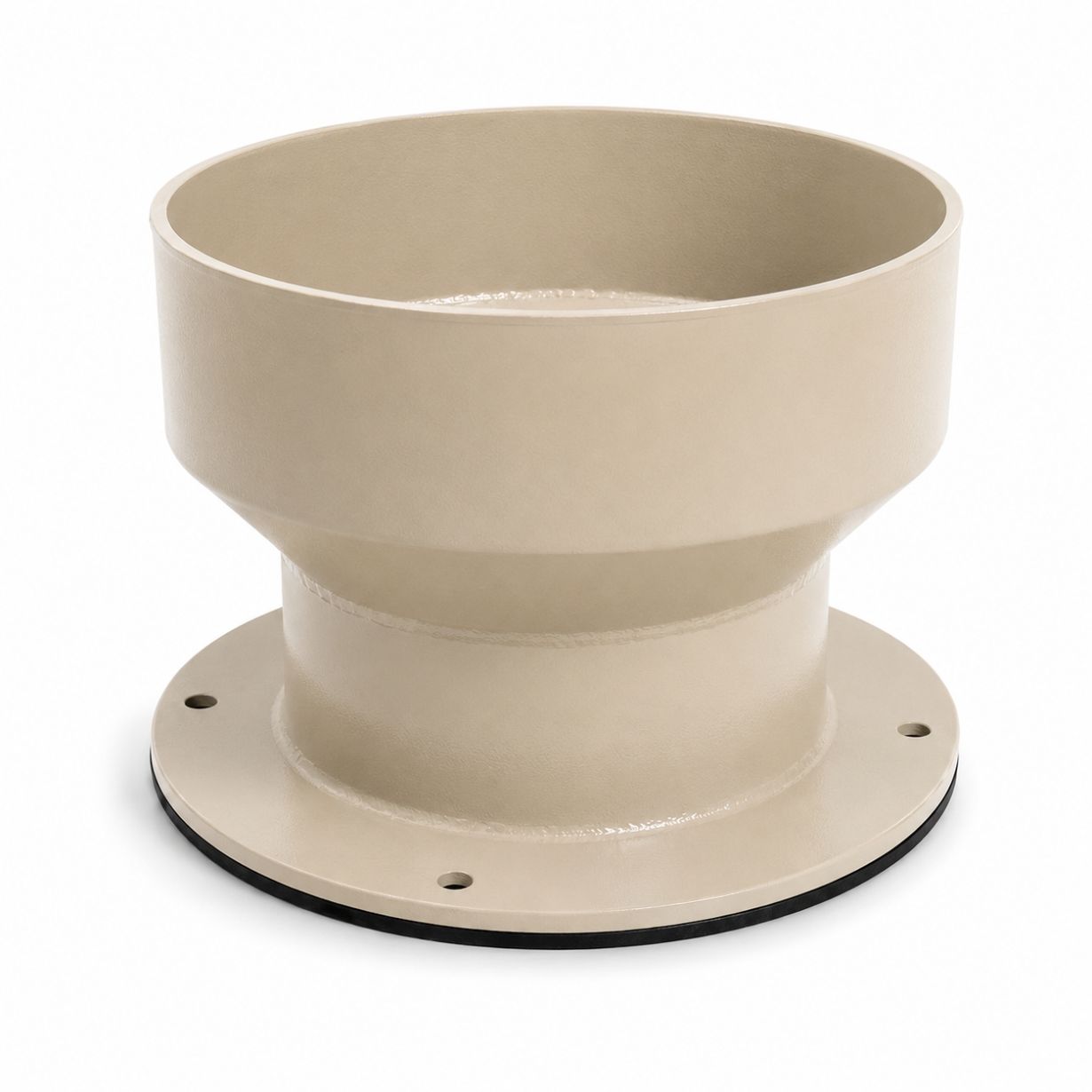

The FumeClear XL-700 100mm to 150mm Duct Adapter is designed to connect the XL-700 fume extractor outlet to a 150mm flexible duct or exhaust hose.
Built with a durable metal body, a secure flange mount, and a black sealing gasket, this adapter helps create a stable and airtight connection between the machine outlet and the ventilation hose. It is ideal for users who need to extend exhaust airflow, connect an external ducting system, or improve hose compatibility for XL-700 installations.

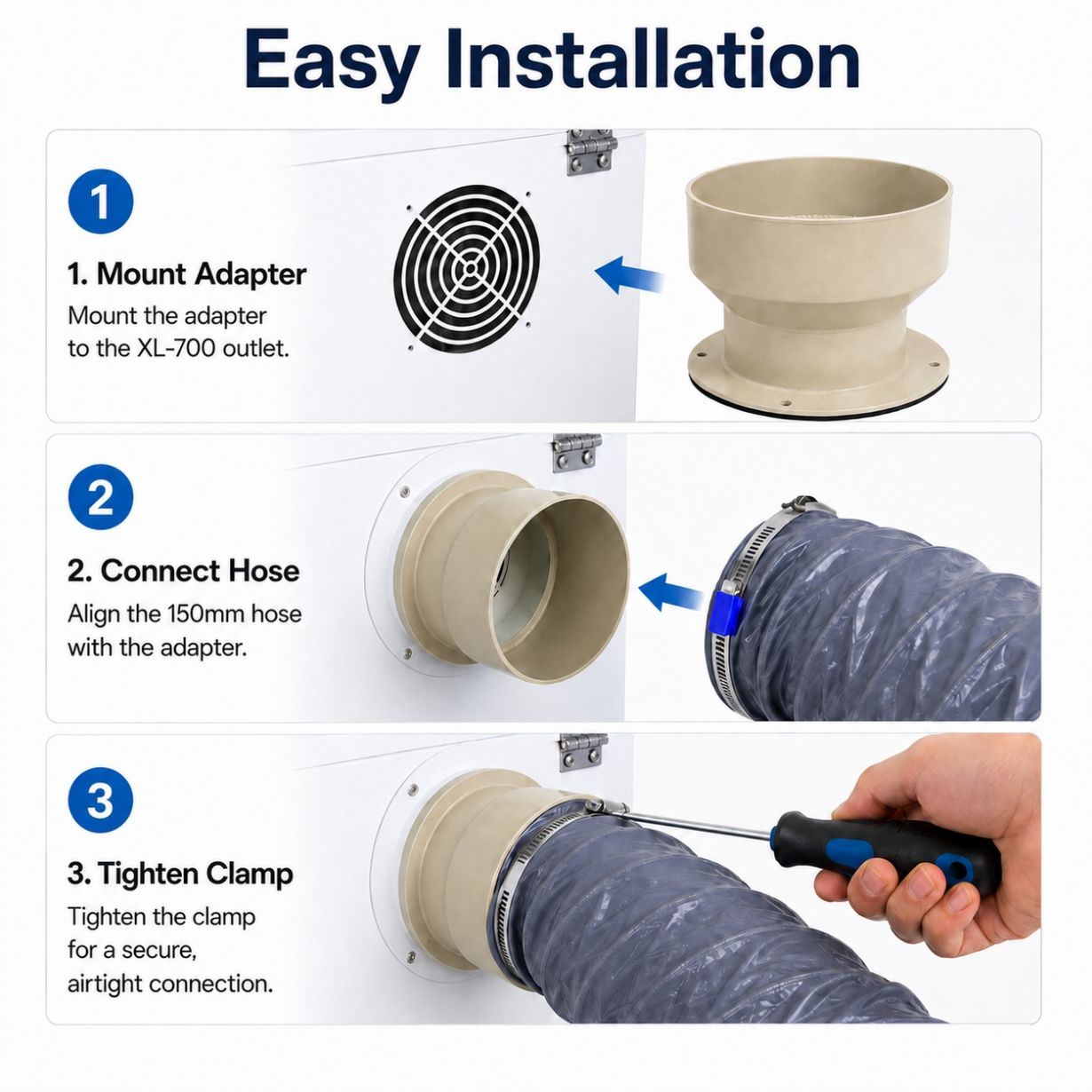

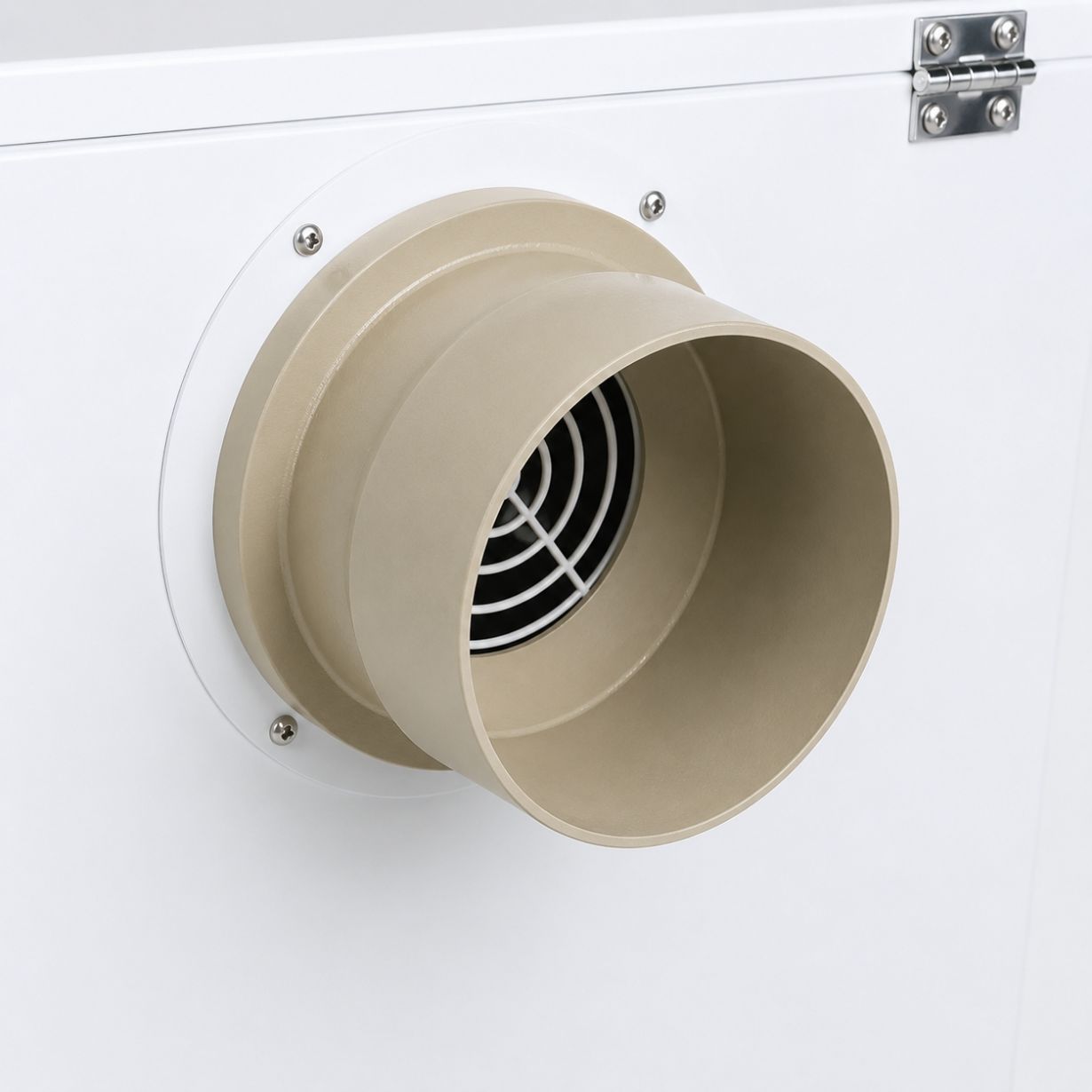

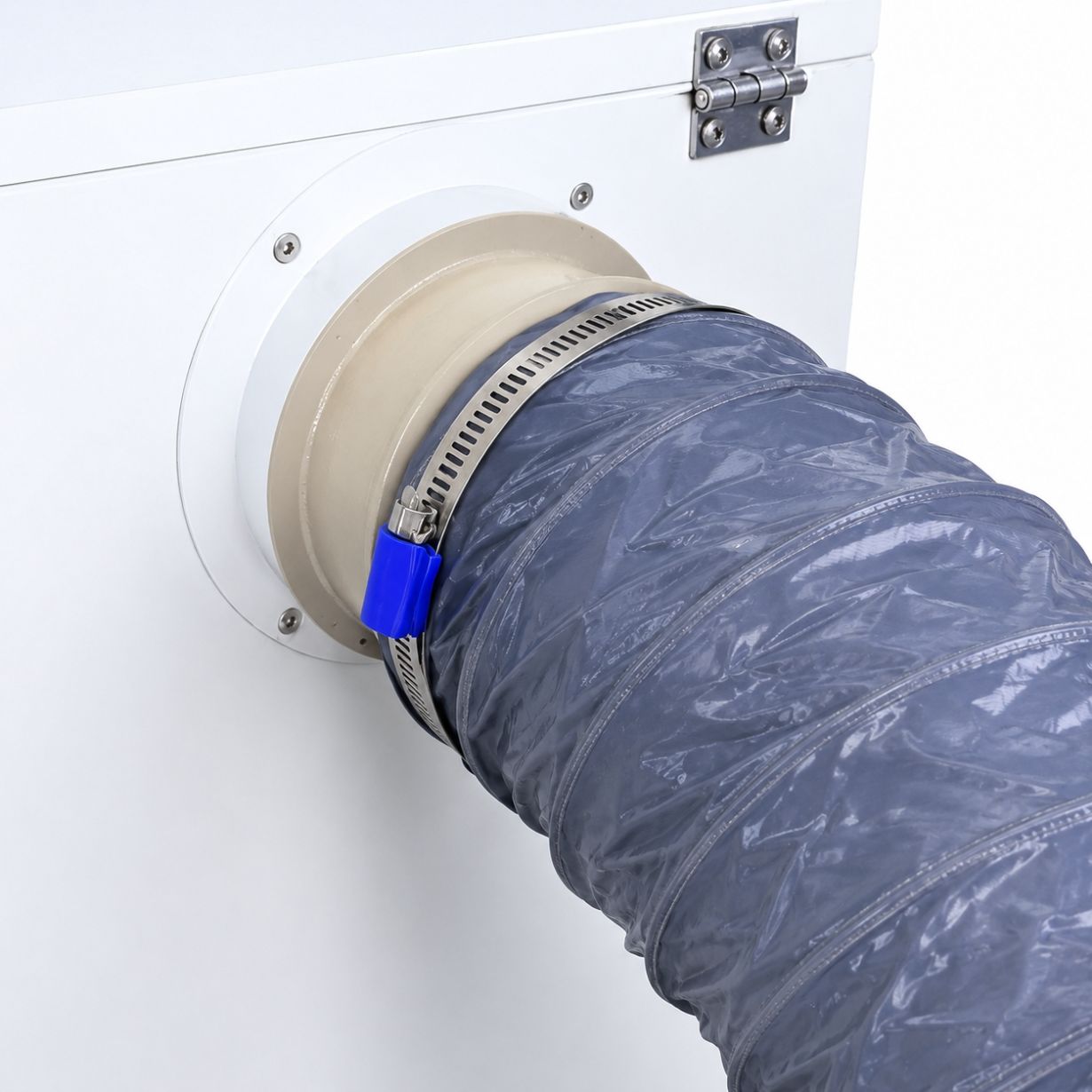

The adapter mounts directly to the XL-700 outlet and allows the 150mm hose to be secured with a metal clamp. Its precision-fit design helps reduce air leakage and keeps the duct connection firm during operation.

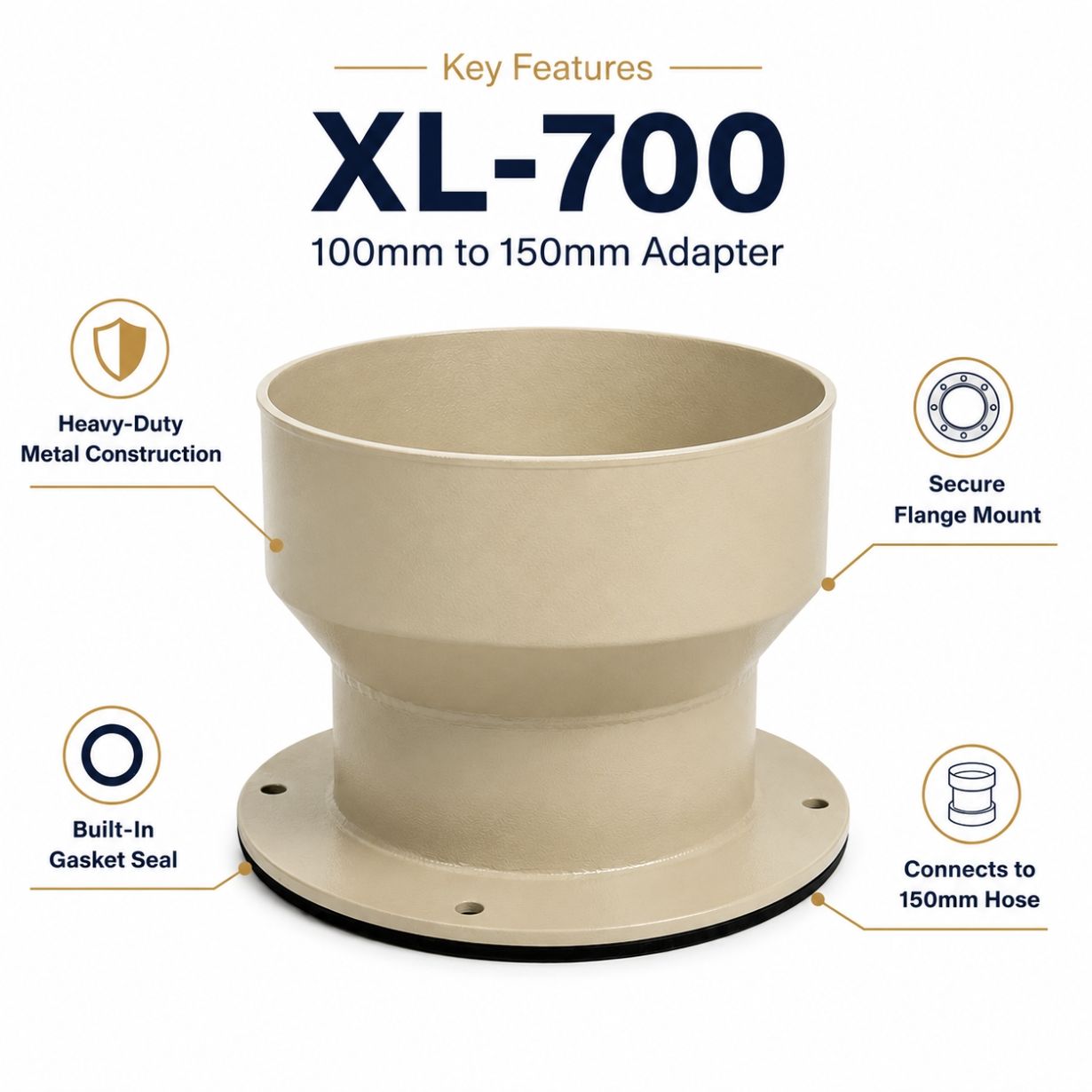

Key Features
- Designed for FumeClear XL-700 fume extractor
- Converts 100mm outlet connection to 150mm hose connection
- Heavy-duty metal construction
- Flange mount design for stable installation
- Built-in black gasket for better sealing
- Compatible with 150mm flexible ducting
- Easy to install with screws and hose clamp
- Helps maintain stable airflow and reduce leakage
Specifications
- Product Type: Duct Adapter
- Compatibility: FumeClear XL-700

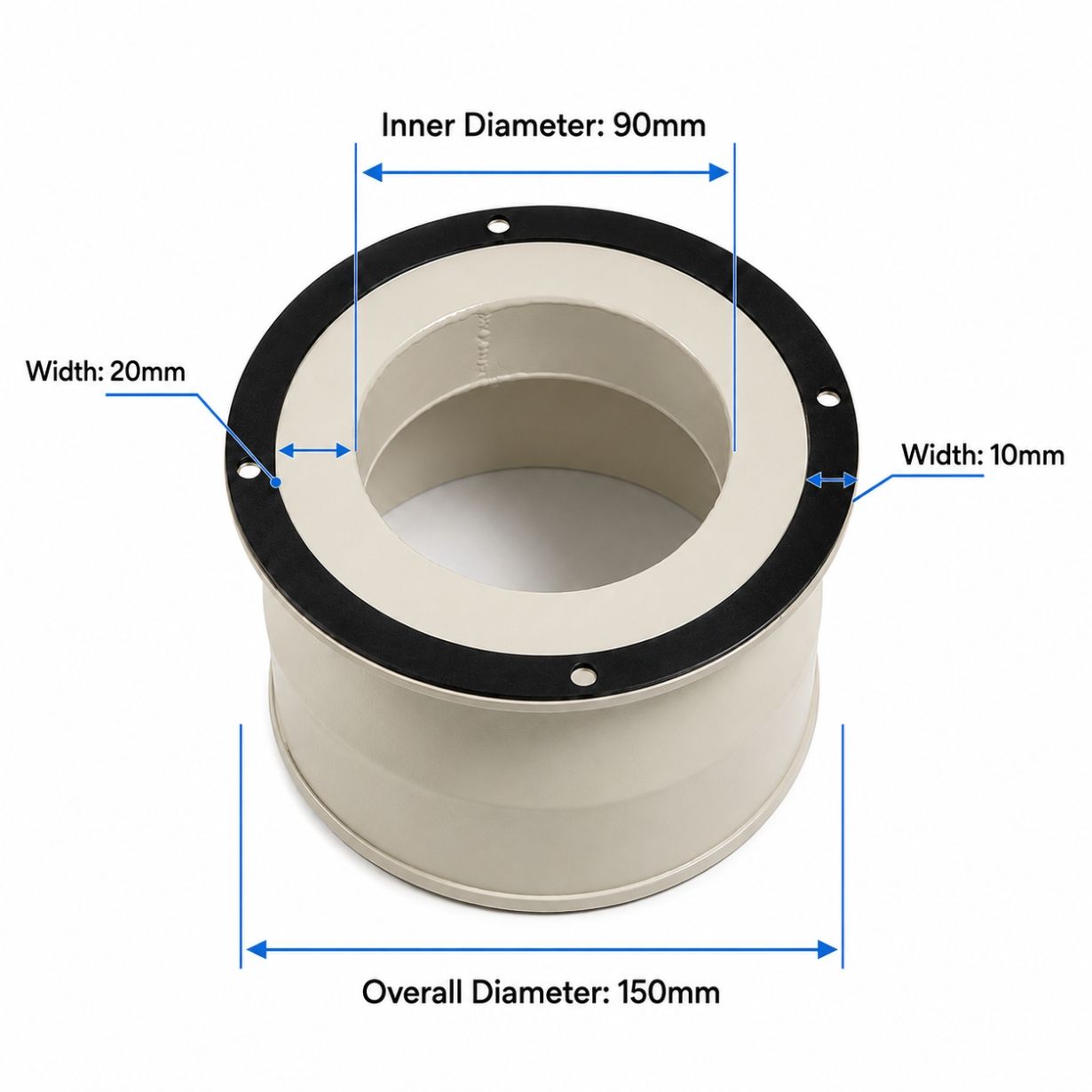

- Inner Diameter: 90mm
- White Ring Width: 20mm
- Black Edge Width: 10mm
- Overall Diameter: 150mm
- Material: Metal
- Color: Off-white / Beige
- Application: Hose connection, duct conversion, fume extraction ventilation
Package Includes
- 1 × XL-700 100mm to 150mm Duct Adapter
